ESPeasy rules for Bellfire fireplace / mertik maxitrol

A back-up of the ESP easy rules that that I used to control my Bellfire fireplace . You can find the end-to-end integration of the Bellfire fireplace with Home Assistant here.

ESPeasy rules

//GIO14 == Relay 1
//GPIO4 == Relay 2
//GPIO 12 == Relay 3

on IGNITION do
  // Close relays contacts
  gpio,14,1
  gpio,12,1
  timerSet 1,1 // 1 second delay
  Publish,/fireplace/status,event,IGNITION

endon

On Rules#Timer=1 do
   ///Open relays contacts
  gpio,14,0
  gpio,4,0
  gpio,12,0

endon

on FIRE_OFF do
  // Close relays contacts
  gpio,14,1
  gpio,4,1
  gpio,12,1
  timerSet 1,1 // 1 second delay
  Publish,/fireplace/status,event,FIRE_OFF
endon

on SECONDBURNER_ON do
  // Close relays contacts
  gpio,14,1
  gpio,4,1
  timerSet 1,1 // 1 second delay
  Publish,/fireplace/status/centerfire,event,SECONDBURNER_ON
endon


on SECONDBURNER_OFF do
  // Close relays contacts
  gpio,4,1
  gpio,12,1
  timerSet 1,1 // 1 second delay
  Publish,/fireplace/status/centerfire,event,SECONDBURNER_OFF
endon

on INCREASE_FIRE do
  // Close relays contacts
  gpio,14,1
  timerSet 1,3 // 1 second delay
endon

on DECREASE_FIRE do
  // Close relays contacts
  gpio,12,1
  timerSet 1,3 // 1 second delay
endon

Wiring photos

Wiring to controller

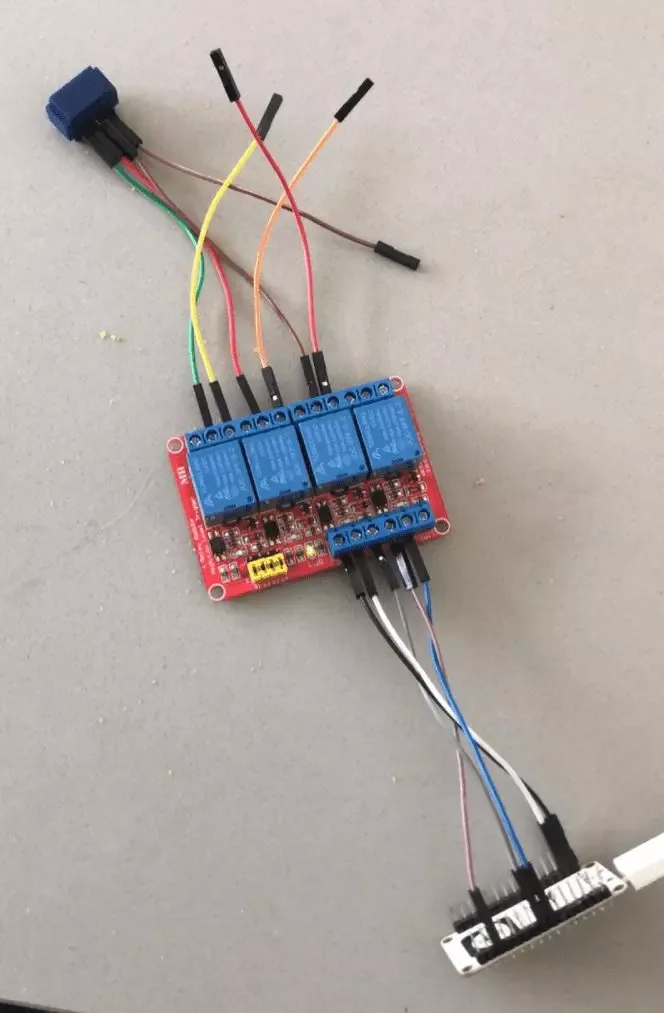

Wiring from ESP to relay

Hope this helps.
